Tile padding extends the bounds of the tile beyond the region that they are initially planned for by an equal amount on all 4 sides. This can help with things like spatial contiguity, so that artificial borders are less obvious.
Padding can be added either via $pad or + and - operators.
The + and - operators specifically modify the padding value based on the
arithmetic ops. This is similar to their usage in terra::Arith-methods
$stride<- is an alternative way to set padding via the stride between
tile starts: pad = (tile_dim - stride) / 2. Requires tile_dims to be
set (i.e. not freeTilePlan). $stride returns the effective stride given
the current pad.
Usage
# S4 method for class 'tilePlan,numeric'
e1 + e2
# S4 method for class 'tilePlan,numeric'
e1 - e2
# S4 method for class 'pointTilePlan,numeric'
e1 + e2
# S4 method for class 'pixelTilePlan,numeric'
e1 + e2
# S4 method for class 'tileGroup,numeric'
e1 + e2
# S4 method for class 'tileGroup,numeric'
e1 - e2
# S4 method for class 'tileSelection,numeric'
e1 + e2
# S4 method for class 'tileSelection,numeric'
e1 - e2spatial and pixel differences
Padding for spatial tile plans is added without any further changes.
Padding for pixel tile plans are automatically zeroed out against the top left
See also
Other tile* methods:
as.polygons(),
bracket,
centroids(),
dim(),
dollar,
double_bracket,
ext(),
intersect(),
plot()
Examples
spat <- tilePlan("spatial")
ext(spat) <- c(0, 1000, 0, 1000)
length(spat) <- 9

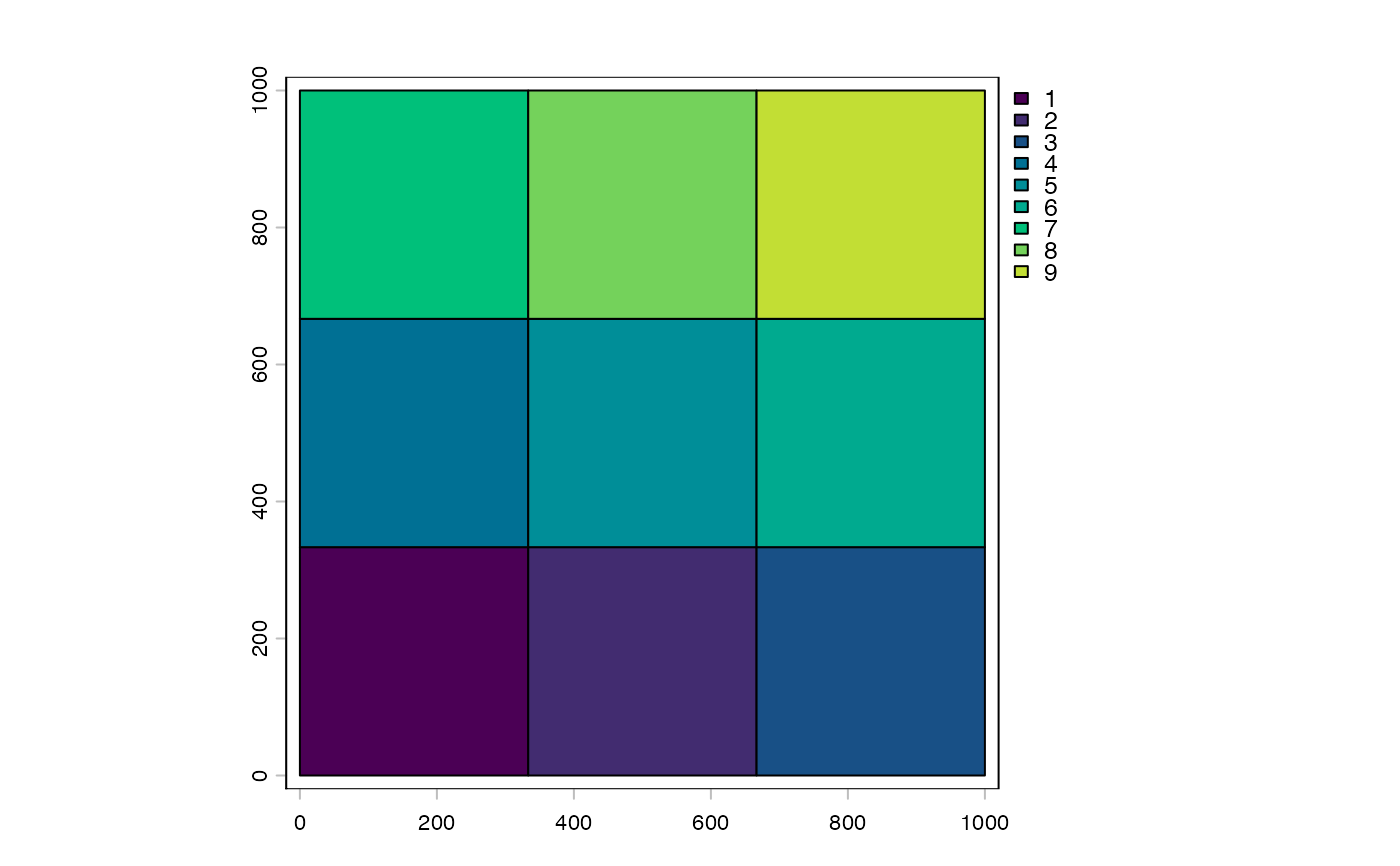

plot(spat)
spat[1:3]
#> [[1]]
#> SpatExtent : 0, 333.333333333333, 0, 333.333333333333 (xmin, xmax, ymin, ymax)
#>
#> [[2]]
#> SpatExtent : 333.333333333333, 666.666666666667, 0, 333.333333333333 (xmin, xmax, ymin, ymax)
#>
#> [[3]]
#> SpatExtent : 666.666666666667, 1000, 0, 333.333333333333 (xmin, xmax, ymin, ymax)
#>
spat <- spat + 10

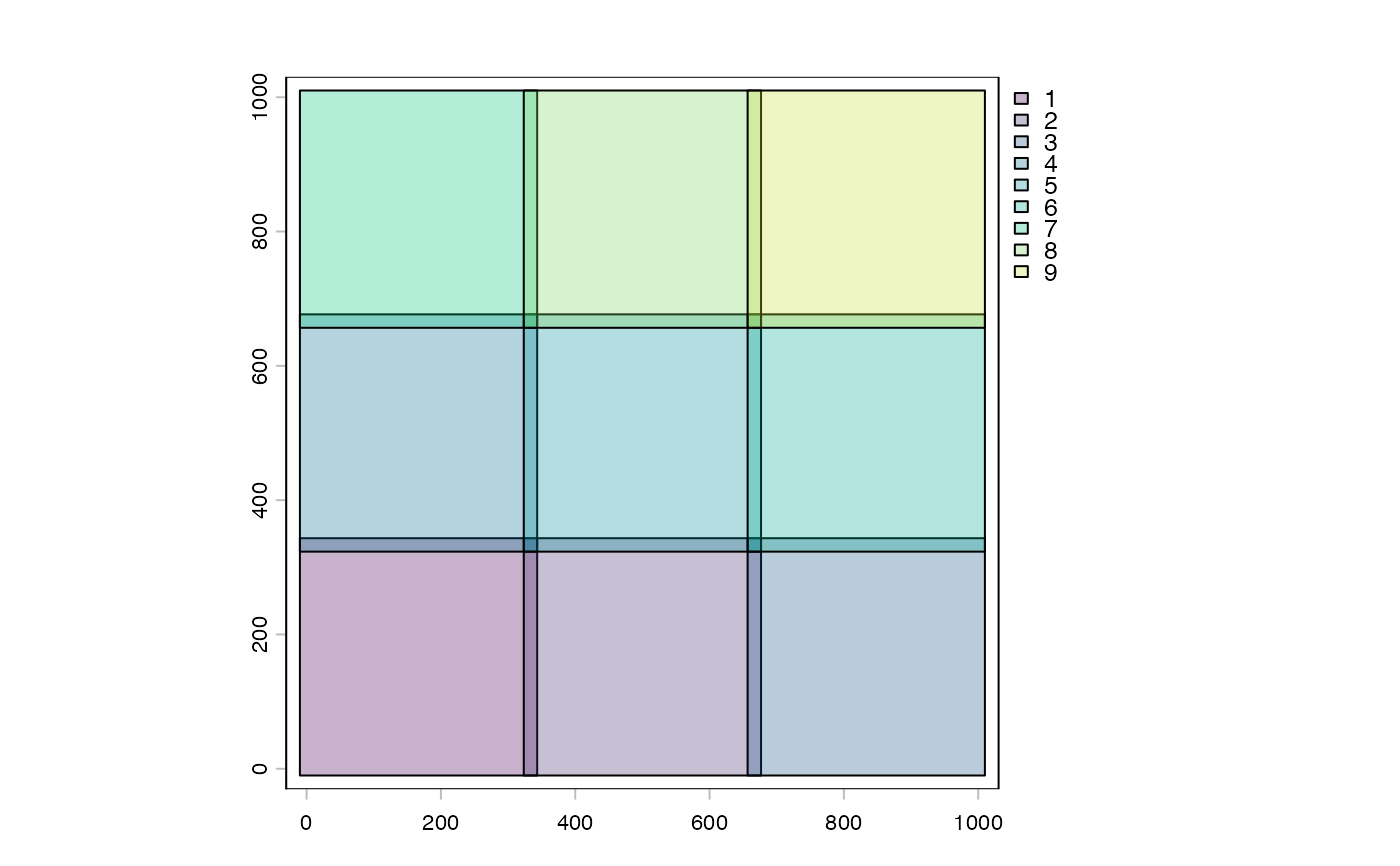

plot(spat)
spat[1:3]
#> [[1]]
#> SpatExtent : -10, 343.333333333333, -10, 343.333333333333 (xmin, xmax, ymin, ymax)
#>
#> [[2]]
#> SpatExtent : 323.333333333333, 676.666666666667, -10, 343.333333333333 (xmin, xmax, ymin, ymax)
#>
#> [[3]]
#> SpatExtent : 656.666666666667, 1010, -10, 343.333333333333 (xmin, xmax, ymin, ymax)
#>
px <- tilePlan("pixel")
px$pxdims <- c(1000, 1000)
px$ncols <- 100
px$nrows <- 100

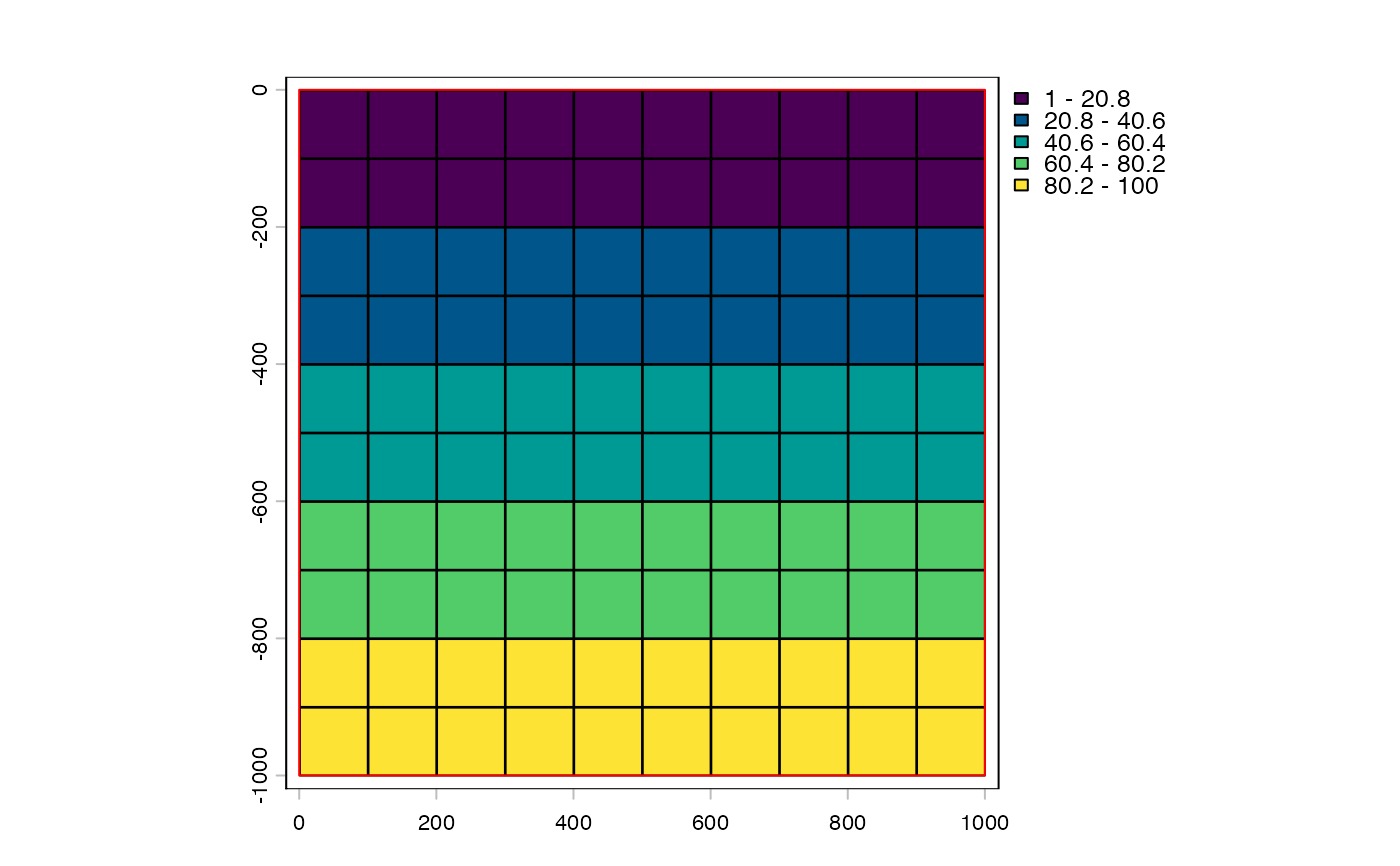

plot(px)
px[1:3]
#> [[1]]
#> [1] 1 100 1 100
#> attr(,"tile")
#> [1] 1
#>
#> [[2]]
#> [1] 101 200 1 100
#> attr(,"tile")
#> [1] 2
#>
#> [[3]]
#> [1] 201 300 1 100
#> attr(,"tile")
#> [1] 3
#>
px <- px + 5

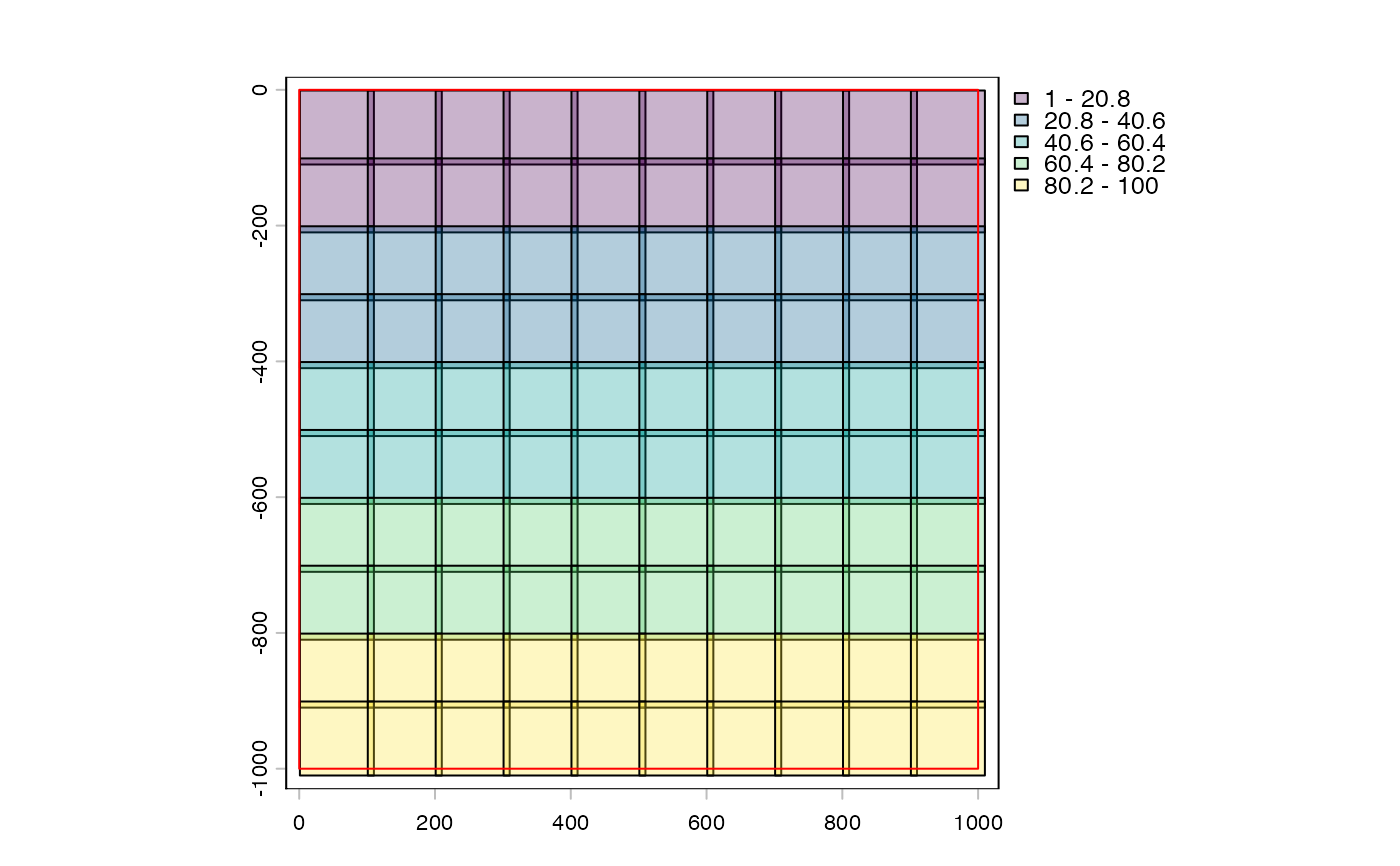

plot(px)
px[1:3]
#> [[1]]
#> [1] 1 110 1 110
#> attr(,"tile")
#> [1] 1
#>
#> [[2]]
#> [1] 101 210 1 110
#> attr(,"tile")
#> [1] 2
#>
#> [[3]]
#> [1] 201 310 1 110
#> attr(,"tile")
#> [1] 3
#>
