Get Data Within Bounds

Source: R/getBoundedData.R
getBoundedData.Rd

Subset or otherwise make available only the data that is within the provided bounds. Accepted bounds types depends on the data.

A related lower-level function is getTile() which handles data/tile* interactions and bound info collection. getTile() calls this generic for its data selection capabilities.

Usage

# S4 method for class 'SpatRaster,numeric'
getBoundedData(x, bound, extend = FALSE, fill = NA)

# S4 method for class 'SpatRaster,SpatExtent'
getBoundedData(x, bound, extend = FALSE, fill = NA)

# S4 method for class 'SpatVectorProxy,SpatExtent'
getBoundedData(x, bound)

Arguments

x

data

bound

bounds to filter with

extend

logical (default = FALSE) whether to extend tile data to reach expected tile dimensions

fill

numeric. if extend = TRUE, what value to fill with

Bounds types

Depending on the method, different bound types are used. Current expected patterns are:

  • numeric of length 4 (xmin, xmax, ymin, ymax)

  • SpatExtent

SpatRaster snapping

getBoundedData() is implemented for SpatRaster, SpatExtent using terra::window(). This uses terra's default snapping behavior (equivalent to snap = "near" in terra::crop()), with no way to set another strategy.

For more precise boundary control:

  • Use pixel-based indexing via the SpatRaster, numeric method

  • Use pixelTilePlan() for exact pixel-level tiling

  • Add padding with tiles + pad_value to ensure spatial context

  • Use terra::crop() directly if you need snap = "out" or snap = "in"

Boundary Inclusivity

Adjacent tiles share exact boundaries. Since {tilework} does not know the format or representation of the underlying data, it does not enforce whether those boundaries are inclusive or exclusive. It is up to the getBoundedData() implementation to decide how features on shared edges are handled.

The existing {terra} methods do not implement inclusive/exclusive boundary control because raster pixel snapping and padding make exact boundary behavior largely irrelevant for that format. For point or tabular data, features on a shared boundary may appear in multiple tiles unless the implementation applies its own filtering (e.g. >= vs > comparisons). The tile's grid position can be passed via get_params from getTile() to inform which edges are interior.

See also

getTile()

Other tile processing: getTile(), tileApply(), tileApply-group, tileApply-iterator, tileApply-plan

Examples

f <- system.file("ex/elev.tif", package = "terra")
r <- terra::rast(f)

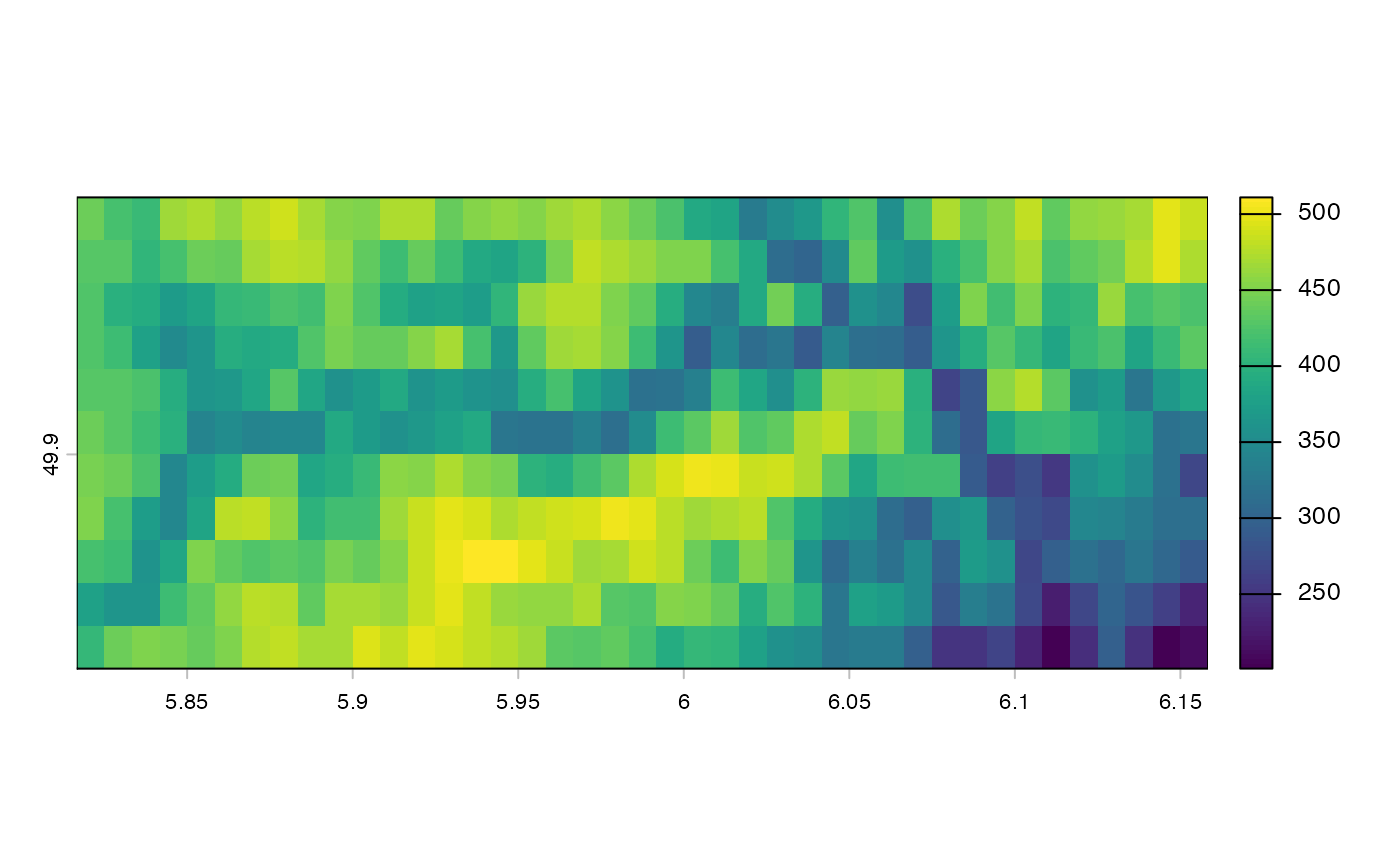

pixel_selection <- getBoundedData(r, c(10, 50, 30, 40))
plot(pixel_selection)

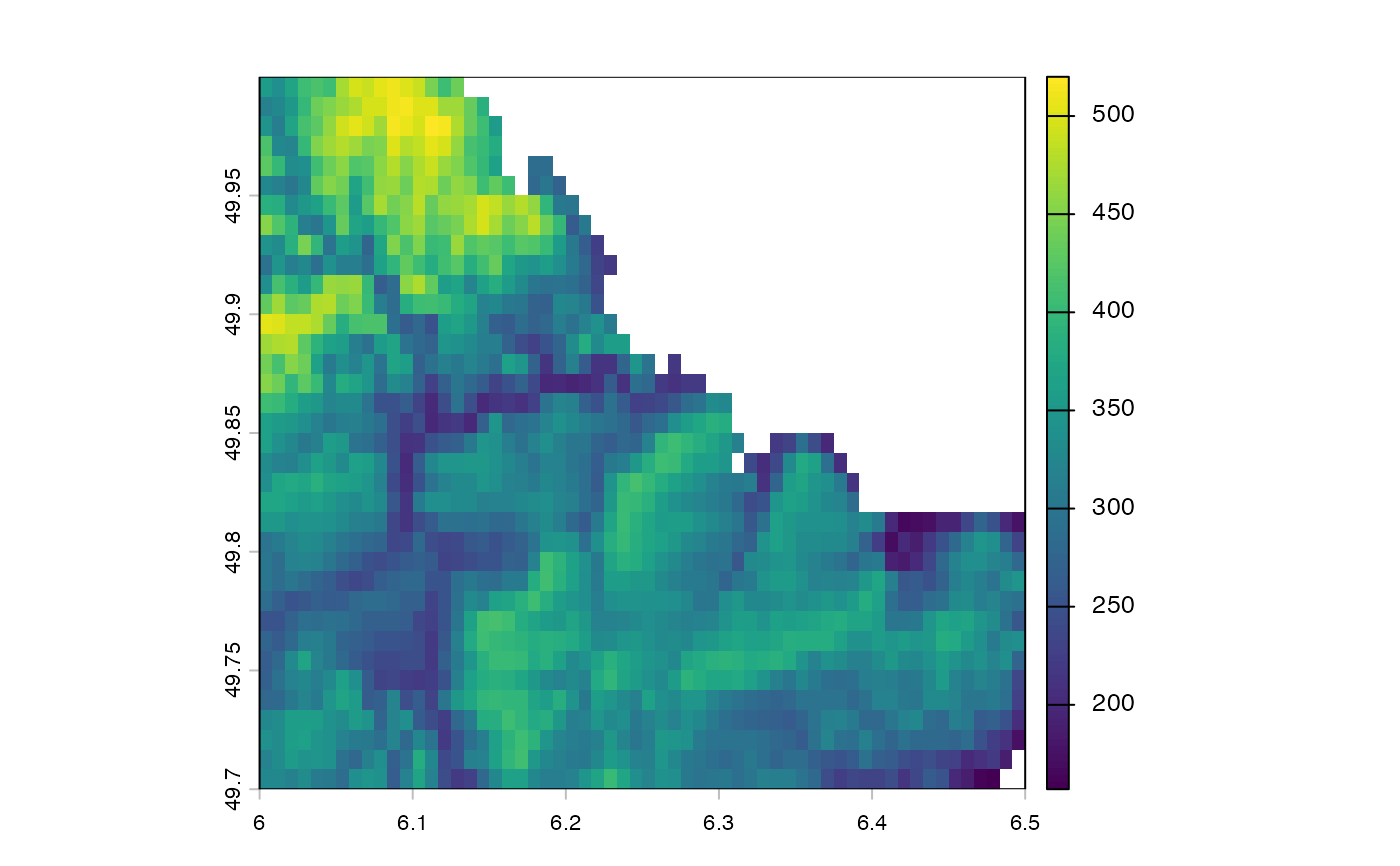

extent_selection <- getBoundedData(r, ext(6, 6.5, 49.7, 50))
plot(extent_selection)
