Point Tile Plan

Source: R/classes.R, R/tilePlan.R, R/pointTilePlan.R
pointTilePlan-class.Rd

Tile plan where each tile is centered on a user-supplied (x, y) coordinate with a uniform tile size. The center coordinates are primary — for use cases like survey sampling, object detection patches, or site-centered extractions where the point location is semantically meaningful.

Utility class for tiling centered on arbitrary (x, y) coordinates with a uniform tile size. Unlike grid-based tile plans, tile placement is driven entirely by the supplied point locations.

All coordinates, tile dims, and padding live in one consistent reference frame set by $input ("spatial" for CRS units, "pixel" for pixel indices). The bound type returned by getTile() is a separate concern controlled by $output and resolved at extraction time.

Usage

pointTilePlan(
  input = c("spatial", "pixel"),
  output = input,
  coords = NULL,
  width = NULL,
  height = NULL,
  ...
)

Arguments

input

character. Coordinate space of coords, dims, and padding: "spatial" for CRS units, "pixel" for pixel indices.

output

character. Bound type returned by getTile(). Defaults to input. Cross-mode conversion requires a SpatRaster at getTile() time (or @rast_dims/@extent set on the plan for standalone use).

coords

n x 2 matrix or data frame of tile center coordinates (columns: x, y). Data frames are coerced via as.matrix(). Equivalent to x$coords <- value after construction.

width

numeric. Uniform tile width in input coordinate units. Equivalent to x$width <- value after construction.

height

numeric. Uniform tile height in input coordinate units. Equivalent to x$height <- value after construction.

Slots

coords

matrix. n x 2 matrix of tile center coordinates (columns: x, y).

input

character. Coordinate space of coords, dims, and padding: "spatial" for CRS units, "pixel" for pixel indices.

output

character. Bound type returned by getTile(): "spatial" or "pixel". Defaults to input. Evaluated at getTile() time, not [i].

rast_dims

numeric. c(nrow, ncol) of the reference raster. Required for plot() when input = "pixel" and for cross-mode conversion without a raster.

extent

numeric. c(xmin, xmax, ymin, ymax) of the reference raster. Required for pixel → CRS conversion without a raster.

n

numeric. Number of tiles (equals number of input points).

dims

integer. Always c(n, 1L).

tile_dims

numeric. Uniform c(height, width) in input coordinate units.

pad

numeric. Tile padding in input coordinate units.

metadata

data.frame. Per-tile metadata; always has "tile", "x", and "y" columns.

Setup

  • pointTilePlan() creates an instance. input defaults to "spatial"; output defaults to input.

  • $coords<- sets the n x 2 center coordinate matrix (columns: x, y). Data frames are also accepted and coerced via as.matrix().

  • $width<- / $height<- set the uniform tile width and height in input coordinate units.

  • $input<- / $output<- change the coordinate / output mode.

  • $nrows<- / $ncols<- are aliases for $height<- / $width<- for consistency with pixelTilePlan when using pixel coordinates.

  • $rast_dims<- sets c(nrow, ncol) of the reference raster — required for plot() when input = "pixel" and for cross-mode getTile() calls when no raster is provided.

  • $extent<- sets c(xmin, xmax, ymin, ymax) — required for pixel → CRS conversion without a raster.

Coordinate modes and required raster metadata

Scenario@rast_dims@extent
input = "spatial", output = "spatial"not needednot needed
input = "pixel", output = "pixel"for plot()not needed
input = "pixel", output = "spatial"requiredrequired
input = "spatial", output = "pixel"requiredderived

When getTile() is called with a SpatRaster, the raster's own metadata is used for conversion — @rast_dims and @extent are only needed for standalone operations (plotting, validation) without a raster.

Getting tile bounds

[i] returns bounds in the input coordinate space: SpatExtent when input = "spatial", integer[4] when input = "pixel". $output is not consulted at [i] time. Use getTile() for output-mode conversion.

Pixel mode and center ambiguity

When input = "pixel", tile dims should be odd for an unambiguous center pixel. With even dimensions center ± width/2 produces non-integer bounds that are truncated by as.integer().

metadata

After setting coords, metadata is auto-populated with "tile", "x", and "y" columns. Additional columns can be added via $<-.

See also

Other tile plans: freeTilePlan, freeTilePlan-class, pixelTilePlan-class, quadtreePlan(), spatialTilePlan-class, tilePlan, tilePlan-class, tilework-class

Other tile plans: freeTilePlan, freeTilePlan-class, pixelTilePlan-class, quadtreePlan(), spatialTilePlan-class, tilePlan, tilePlan-class, tilework-class

Examples

tp <- pointTilePlan("spatial")
tp$coords <- cbind(x = c(10, 20, 30), y = c(5, 15, 25))
tp$width  <- 5
tp$height <- 5
tp
#> Object of class pointTilePlan
#> input     : spatial
#> output    : spatial
#> n         : 3
#> tile_dims : 5, 5 (height, width)
#> pad       : 0

length(tp)
#> [1] 3
tp[1]
#> [[1]]
#> SpatExtent : 7.5, 12.5, 2.5, 7.5 (xmin, xmax, ymin, ymax)
#>
tp[2:3]
#> [[1]]
#> SpatExtent : 17.5, 22.5, 12.5, 17.5 (xmin, xmax, ymin, ymax)
#>
#> [[2]]
#> SpatExtent : 27.5, 32.5, 22.5, 27.5 (xmin, xmax, ymin, ymax)
#>
centroids(tp)
#>  class       : SpatVector
#>  geometry    : points
#>  dimensions  : 3, 0  (geometries, attributes)
#>  extent      : 10, 30, 5, 25  (xmin, xmax, ymin, ymax)
#>  coord. ref. :

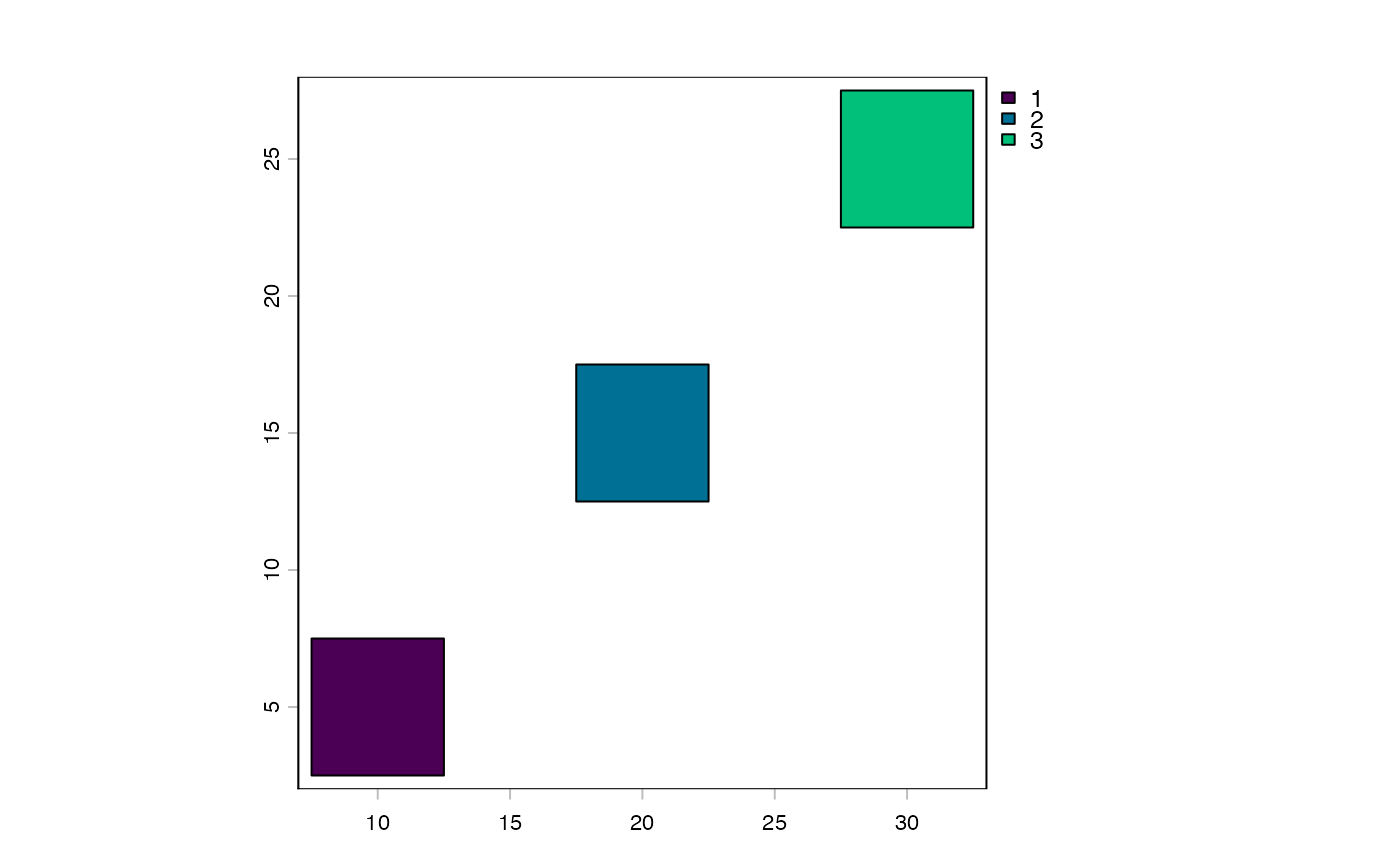

plot(tp)


# CRS input, pixel output (raster needed at getTile time)
tp2 <- pointTilePlan(input = "spatial", output = "pixel")
tp2$coords <- cbind(x = c(10, 20), y = c(5, 15))
tp2$width  <- 100
tp2$height <- 100
