Example dataset: Vizgen’s Mouse Brain Receptor Map data release.

Some of the subobject data will be extracted to illustrate the transforms.

# Ensure Giotto Suite is installed
if(!"Giotto" %in% installed.packages()) {
  pak::pkg_install("drieslab/Giotto")
}

# Ensure Giotto Data is installed
if(!"GiottoData" %in% installed.packages()) {
  pak::pkg_install("drieslab/GiottoData")
}
library(Giotto)

g <- GiottoData::loadGiottoMini(dataset = "vizgen")
activeSpatUnit(g) <- "aggregate"

gpoly <- g[[, "aggregate"]][[1]]
gimg <- g[[, "dapi_z0"]][[1]]

1 Overview

Spatial-omics data is defined both by the biological information that it contains and the way that it maps to space. When assembling and analyzing a spatial dataset, it may be necessary to spatially manipulate the data so that they are all in a common coordinate reference frame where all data is in at the same scaling and rotation, and properly overlaid.

Giotto extends a set of generics from terra in order to make it simple to figure out where data is in space and to move it where you need it.

1.1 Spatial transforms:

We support simple transformations and more complex affine transformations which can be used to combine and encode more than one simple transform.

1.2 Spatial utilities:

Helpful functions for working with spatial information

  • ext()/ext()<- - get and set spatial extent or bounding box
  • XY()/XY()<- - get and set the xy coordinates (or vertices) of the object as a matrix
  • crop() - cut out a spatial region of the data
  • plot() - plot a spatial object (uses {base} plot())

1.3 Giotto spatial classes:

The following objects and subobjects are spatial objects and respond to the spatial manipulation functions on this page.

  • spatLocsObj - xy centroids
  • spatialNetworkObj - spatial networks between centroids
  • giottoPoints - xy feature point detections
  • giottoPolygon - spatial polygons
  • giottoImage (mostly deprecated) - magick-based images
  • giottoLargeImage/giottoAffineImage - terra-based images
  • affine2d - affine matrix container
  • giotto - giotto analysis object

2 Examples

2.1 ext() spatial bounds and extent

One of the most convenient descriptors of where an object is in space is its minimal and maximal in the coordinate plane, also known as the boundaries or spatial extent of that information. It can be thought of as bounding box around where your information exists in space. {Giotto} incorporates usage of the SpatExtent class and associated ext() generic from {terra} to describe objects spatially.

2.1.1 Getting extent

Works for all spatial objects

ext(gimg)     # giottoLargeImage
SpatExtent : 6400.029, 6900.037, -5150.007, -4699.967 (xmin, xmax, ymin, ymax)
ext(gpoly)     # giottoPolygon
SpatExtent : 6399.24384990901, 6903.24298517207, -5152.38959073896, -4694.86823300896 (xmin, xmax, ymin, ymax)

The giotto analysis object finds the searches through all objects of the spat_unit. It returns an extent that encompasses everything it found. You can set prefer to limit the search to specific types of data. Allowed terms are “polygon”, “spatlocs”, “points”, “images”.

ext(g) # all data for default spat unit ("aggregate")
SpatExtent : 6391.46568586489, 6903.57332779812, -5153.89721175534, -4694.86823300896 (xmin, xmax, ymin, ymax)
ext(g, prefer = c("points", "spatlocs")) # restrict to only points and spatial location centroids
SpatExtent : 6400.037, 6900.0317, -5149.9834, -4699.9785 (xmin, xmax, ymin, ymax)

2.1.2 Setting Extent

Directly set the spatial extent of objects. This changes the object by reference for giottoPolygon, giottoPoints, and giottoLargeImage inheriting objects. In order to avoid changing the object everywhere it is being used, copy() should be run.

Setting the extent is supported for all objects except spatialNetworkObj (since they may contain additional statistics that normally should be recalculated from the raw spatial locations after a transform) and the giotto object as whole.

  • affine2d is also an exception since ext()<- assigns the anchoring spatial extent instead of what might otherwise be expected.

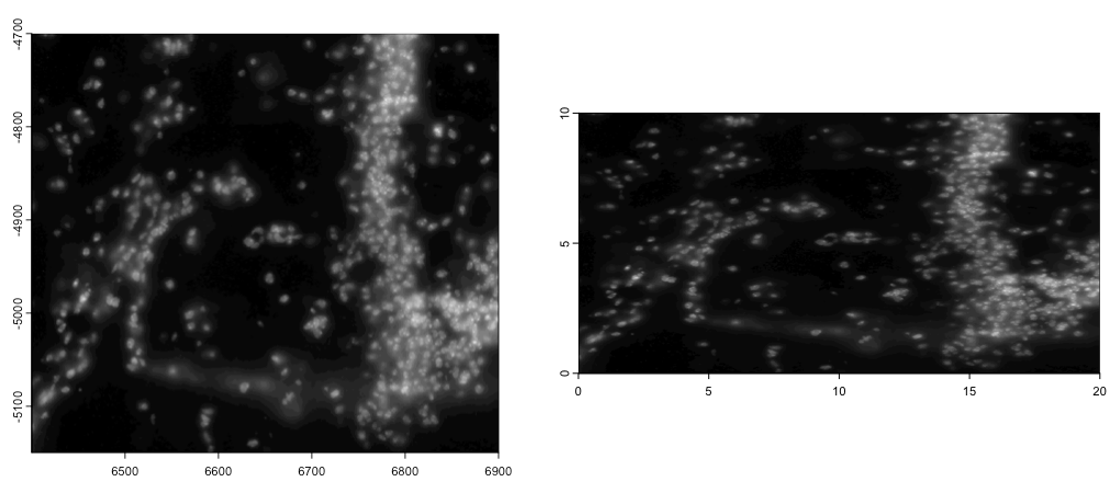

plot(gimg)
gimg_copy <- copy(gimg)
ext(gimg_copy) <- c(0, 20, 0, 10) # xmin, xmax, ymin, ymax
plot(gimg_copy)
SpatExtent : 0, 20, 0, 10 (xmin, xmax, ymin, ymax)

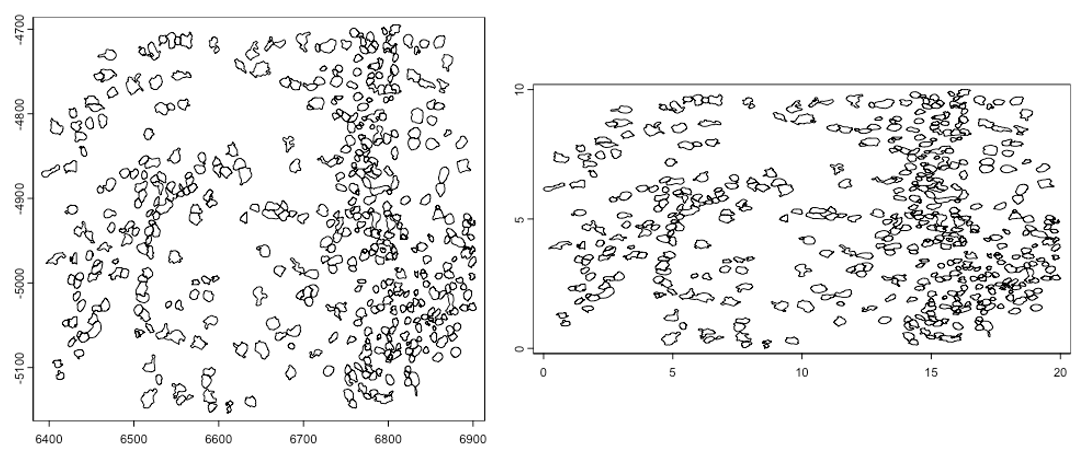

plot(gpoly)
gpoly_copy <- copy(gpoly)
ext(gpoly_copy) <- c(0, 20, 0, 10) # xmin, xmax, ymin, ymax
ext(gpoly_copy)
plot(gpoly_copy)
SpatExtent : 0, 20, 0, 10 (xmin, xmax, ymin, ymax)

2.2 XY() accessing spatial coordinates

Spatial coordinates for can be directly retrieved and replaced for giottoPoints, giottoPolygon, and spatLocsObj. The coordinates when retrieving or being set should be of class matrix.

# point-type data
sl <- g[["spatial_locs"]][[1]] # spatLocsObj
sl_mini <- sl[1:10]
XY(sl_mini)
             x         y
 [1,] 6405.067 -4780.499
 [2,] 6426.020 -4972.519
 [3,] 6428.456 -4799.158
 [4,] 6408.155 -4816.583
 [5,] 6425.894 -4862.808
 [6,] 6426.858 -5070.148
 [7,] 6413.179 -5109.696
 [8,] 6402.438 -5112.440
 [9,] 6428.358 -5046.636
[10,] 6410.095 -5094.962
# polygon-type data
gpoly_mini <- gpoly[1:10]
gpoly_mini_xy <- XY(gpoly_mini)
head(gpoly_mini_xy, 10) # provides individual vertices (not separated by poly_ID)
             x         y
 [1,] 6642.257 -5136.674
 [2,] 6642.711 -5137.020
 [3,] 6643.050 -5137.462
 [4,] 6643.310 -5137.956
 [5,] 6643.484 -5138.518
 [6,] 6643.589 -5139.191
 [7,] 6643.584 -5139.974
 [8,] 6643.687 -5140.649
 [9,] 6643.805 -5141.326
[10,] 6643.663 -5142.028

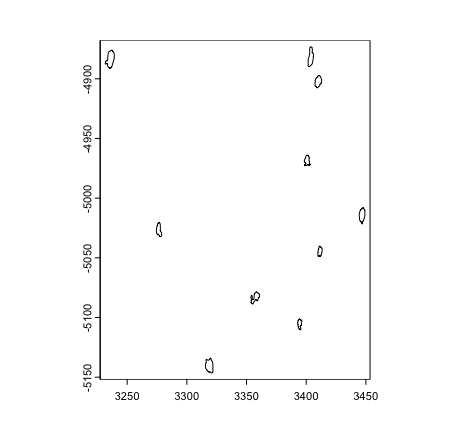

# edit coordinate matrix and return to object
gpoly_mini_xy[, "x"] <- gpoly_mini_xy[, "x"] / 2

XY(gpoly_mini) <- gpoly_mini_xy
plot(gpoly_mini)

2.3 Simple transforms

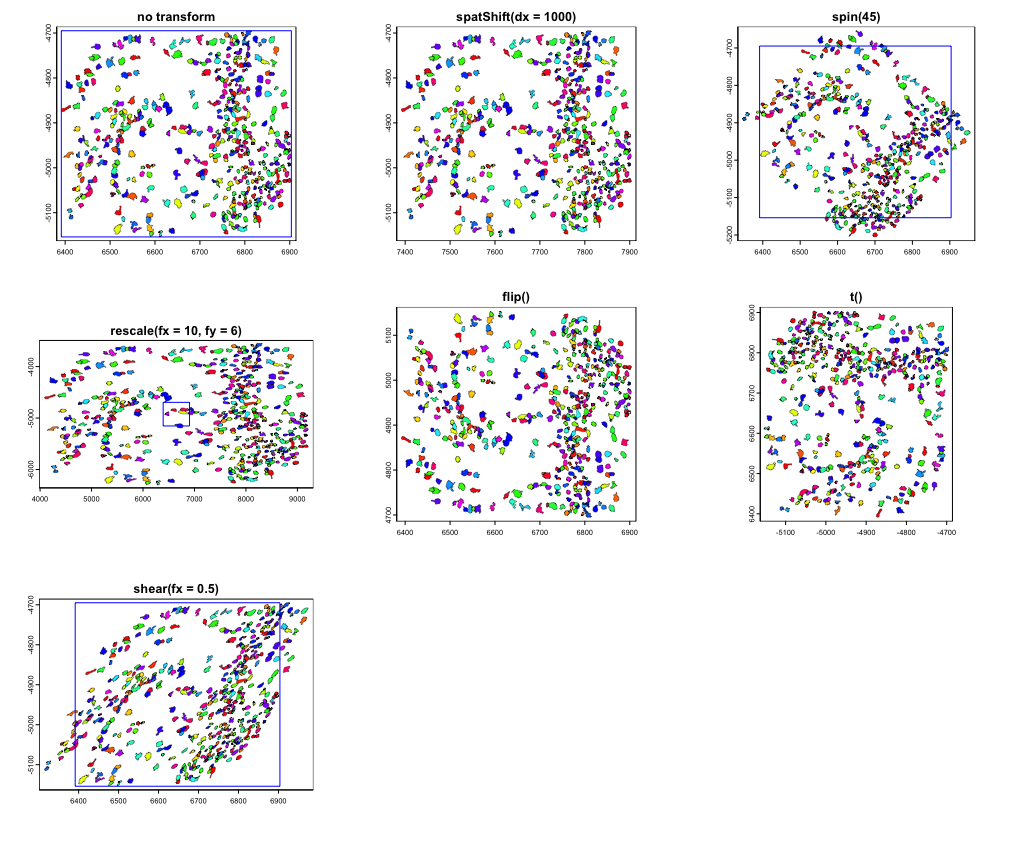

Plots demonstrating no transform, spatShift(), spin(), rescale(), flip(), t(), and shear() usage. The blue rectangle marks out the original spatial extent that the data occupied (if it would still be within the field of view).

rain <- sample(rainbow(nrow(gpoly)))
line_width <- 0.3
e <- ext(gpoly)

# par to setup the grid plotting layout
p <- par(no.readonly = TRUE)
par(mfrow=c(3,3))
gpoly |>
    plot(main = "no transform", col = rain, lwd = line_width)
plot(e, add = TRUE, border = "blue")
gpoly |> spatShift(dx = 1000) |>
    plot(main = "spatShift(dx = 1000)", col = rain, lwd = line_width)
plot(e, add = TRUE, border = "blue")
gpoly |> spin(45) |>
    plot(main = "spin(45)", col = rain, lwd = line_width)
plot(e, add = TRUE, border = "blue")
gpoly |> rescale(fx = 10, fy = 6) |>
    plot(main = "rescale(fx = 10, fy = 6)", col = rain, lwd = line_width)
plot(e, add = TRUE, border = "blue")
gpoly |> flip(direction = "vertical") |>
    plot(main = "flip()", col = rain, lwd = line_width)
plot(e, add = TRUE, border = "blue")
gpoly |> t() |>
    plot(main = "t()", col = rain, lwd = line_width)
plot(e, add = TRUE, border = "blue")
gpoly |> shear(fx = 0.5) |>
    plot(main = "shear(fx = 0.5)", col = rain, lwd = line_width)
plot(e, add = TRUE, border = "blue")
par(p)

2.4 Affine transforms

The above transforms are all simple, but you can imagine that performing them in sequence on your dataset can be computationally expensive.

Luckily, the above operations are all affine transformation, and they can be condensed into a single step. Affine transforms where the x and y values undergo a linear transform. These transforms in 2D, can all be represented as a 2x2 matrix or 2x3 if the xy translation values are included.

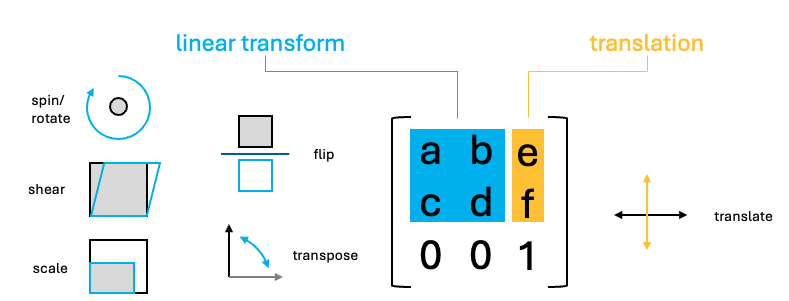

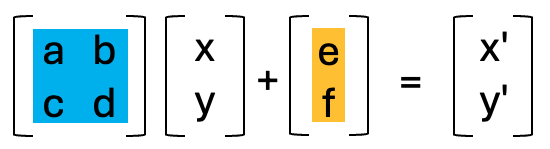

To perform the linear transform, the xy coordinates just need to be matrix multiplied by the 2x2 affine matrix. The resulting values should then be added to the translate values.

Due to the nature of matrix multiplication, you can simply multiply the affine matrices with each other and when the xy coordinates are multiplied by the resulting matrix, it performs both linear transforms in the same step.

Giotto provides a utility affine2d S4 class that can be created from any affine matrix and responds to the affine transform functions to simplify this accumulation of simple transforms.

Once done, the affine2d can be applied to spatial objects in a single step using affine() in the same way that you would use a matrix.

# create affine2d
aff <- affine() # when called without params, this is the same as affine(diag(c(1, 1)))

The affine2d object also has an anchor spatial extent, which is used in calculations of the translation values. affine2d generates with a default extent, but a specific one matching that of the object you are manipulating (such as that of the giottoPolygon) should be set.

ext(aff) <- ext(gpoly)
# append several simple transforms
aff <- aff |>
    spatShift(dx = 1000) |>
    spin(45, x0 = 0, y0 = 0) |> # without the x0, y0 params, the extent center is used
    rescale(10, x0 = 0, y0 = 0) |> # without the x0, y0 params, the extent center is used
    flip(direction = "vertical") |>
    t() |>
    shear(fx = 0.5)
force(aff)
<affine2d>
anchor    : 6391.46568586489, 6903.57332779812, -5153.89721175534, -4694.86823300896  (xmin, xmax, ymin, ymax)
rotate    : -0.785398163397448  (rad)
shear     : 0.5, 0  (x, y)
scale     : 10, 10  (x, y)
translate : 978.859285884871, 7071.06781186547  (x, y)

The show() function displays some information about the stored affine transform, including a set of decomposed simple transformations.

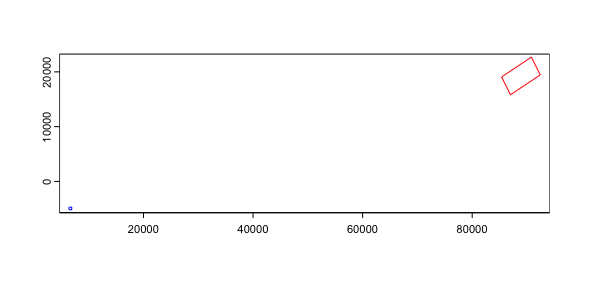

You can then plot the affine object and see a projection of the spatial transform where blue is the starting position and red is the end.

plot(aff)

We can then apply the affine transforms to the giottoPolygon to see that it indeed in the location and orientation that the projection suggests.

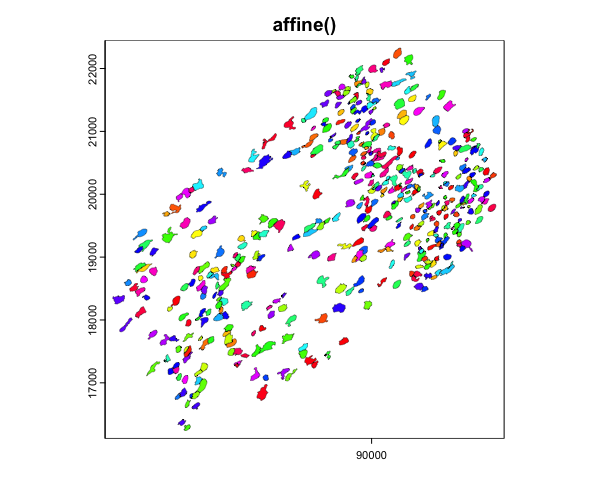

plot(affine(gpoly, aff), main = "affine()", col = rain, lwd = line_width)

2.4.1 Affine image transforms

Giotto uses giottoLargeImages as the core image class which is based on terra SpatRaster. Images are not loaded into memory when the object is generated and instead an amount of regular sampling appropriate to the zoom level requested is performed at time of plotting.

spatShift() and rescale() operations are supported by terra SpatRaster, and we inherit those functionalities. spin(), flip(), t(), shear(), affine() operations will coerce giottoLargeImage to giottoAffineImage, which is much the same, except it contains an affine2d object that tracks spatial manipulations performed, so that they can be applied through magick::image_distort() processing after sampled values are pulled into memory. giottoAffineImage also has alternative ext() and crop() methods so that those operations respect both the expected post-affine space and un-transformed source image.

# affine transform of image info matches with polygon info

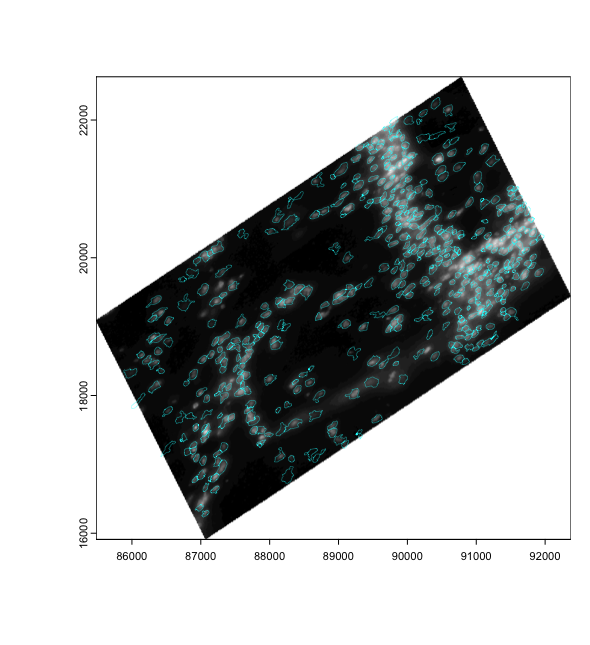

plot(affine(gimg, aff))
plot(affine(gpoly, aff), add = TRUE, border = "cyan", lwd = 0.3)

2.4.2 Affine giotto object transforms

Giotto objects can be transformed using affine()

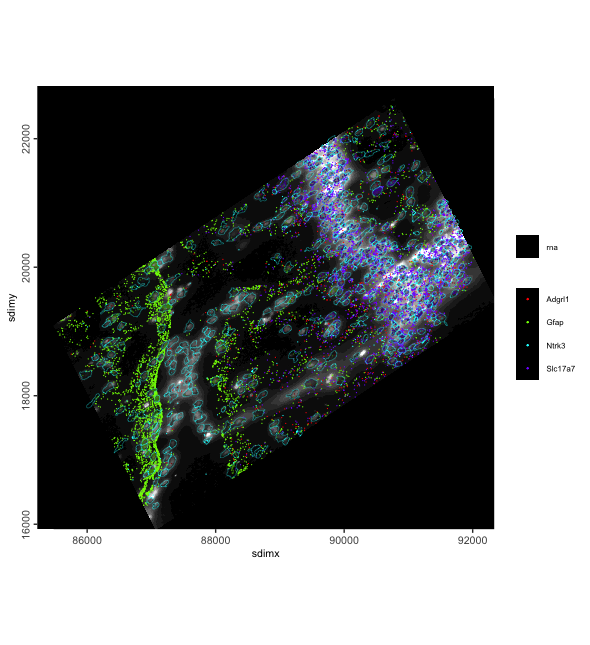

gaffine <- affine(g, aff)

spatInSituPlotPoints(gaffine,
    show_image = TRUE,
    feats = list(rna = c("Adgrl1", "Gfap", "Ntrk3", "Slc17a7")),
    feats_color_code = rainbow(4),
    polygon_color = "cyan",
    polygon_line_size = 0.1,
    point_size = 0.1,
    use_overlap = FALSE
)
