Cross sections in {Giotto} are used to generate an in-silico cross section of a 3D dataset along an arbitrary 2D plane.
A plane may be defined in one of four ways:
"equation" - Provide a vector of 4 numerics to
equation. These will be taken as the A, B, C, D
coefficients in the plane-defining function Ax + By + Cz = D
This method is shown below.
"3 points" - Provide 3D coordinates to
point1, point2, point3 params.
For example:
method = "3 points",
point1 = c(100, 200, 300),
point2 = c(400, 200, 300),
point3 = c(100, 500, 700)"point and norm vector" - Provide a 3D point anchor,
then a 3D vector normal to the plane to set the plane rotation. For
example:
method = "point and norm vector",
point1 = c(100, 200, 300),
normVector = c(0, 1, 0) # Normal points in y direction (horizontal plane)"point and two plane vectors" - Provide a 3D point
anchor and two non-parallel 3D vectors that define the plane rotation.
For example:
method = "point and two plane vectors",
point1 = c(100, 200, 300),
planeVector1 = c(1, 0, 0), # Vector along x-axis
planeVector2 = c(0, 0, 1) # Vector along z-axis1 Setup and load example dataset
For the example, we use a mini premade giotto object.
This was mini dataset is a randomly sampled subset of a STARmap mouse
brain dataset.
# Ensure Giotto Suite is installed
if(!"Giotto" %in% installed.packages()) {
pak::pkg_install("drieslab/Giotto")
}
# Ensure Giotto Data is installed
if(!"GiottoData" %in% installed.packages()) {
pak::pkg_install("drieslab/GiottoData")
}
library(Giotto)
# load the object
g <- GiottoData::loadGiottoMini("starmap")2 Create Cross Section
Next we define the cross section to create using the
"equation" method.
g <- createCrossSection(g,
method = "equation",
equation = c(0, 1, 0, 600),
extend_ratio = 0.6,
name = "new_cs",
return_gobject = TRUE
)3 Plot cross section

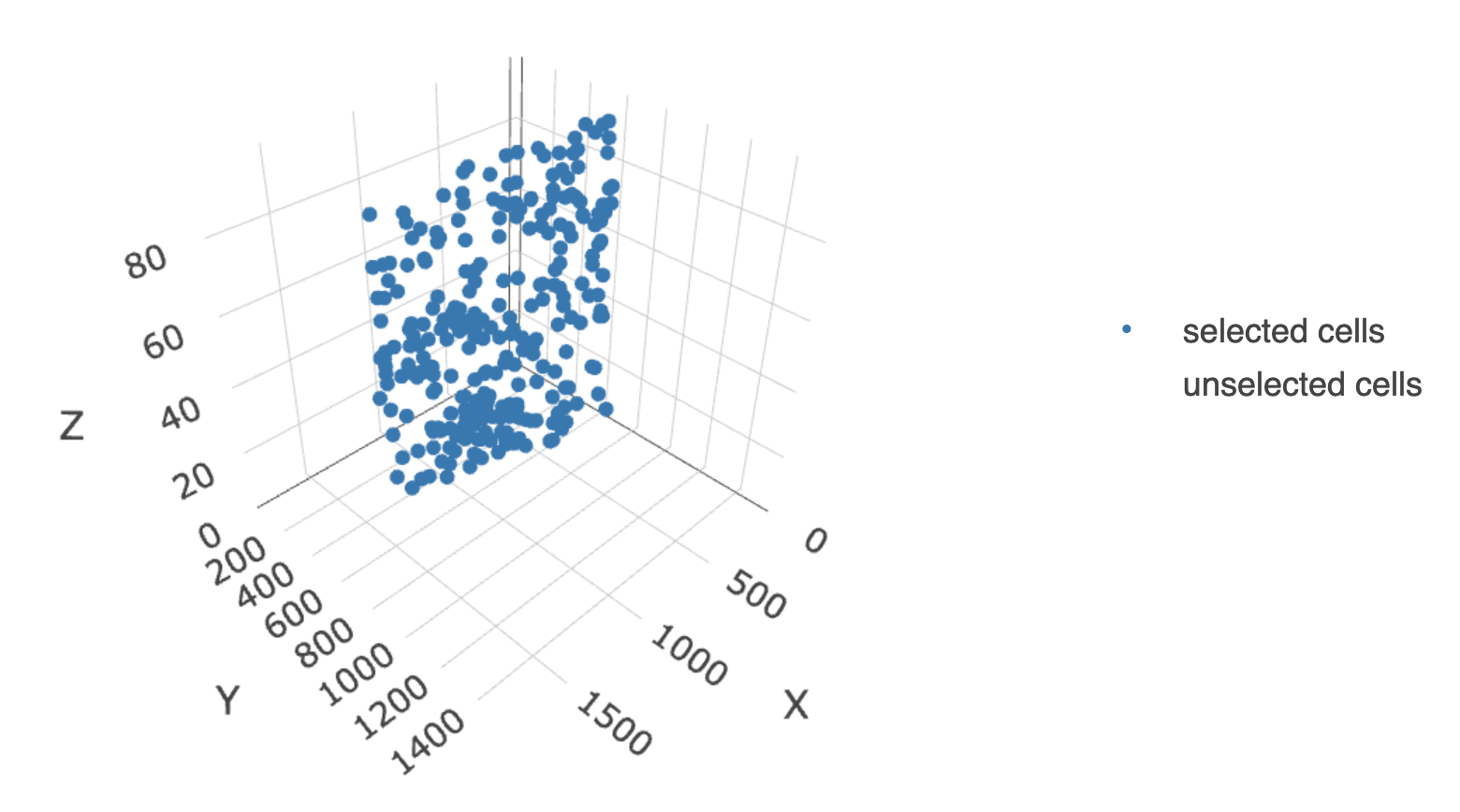

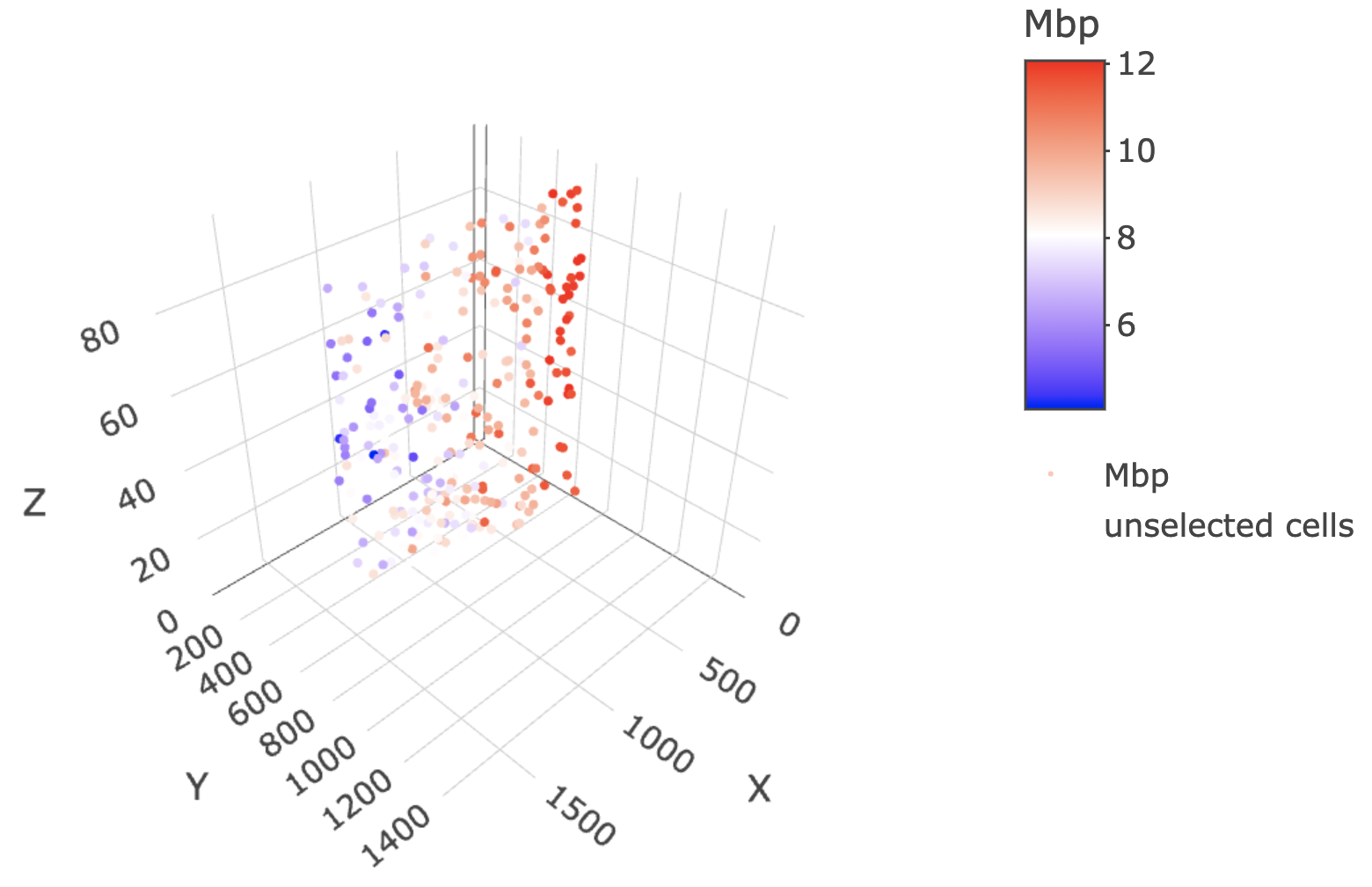

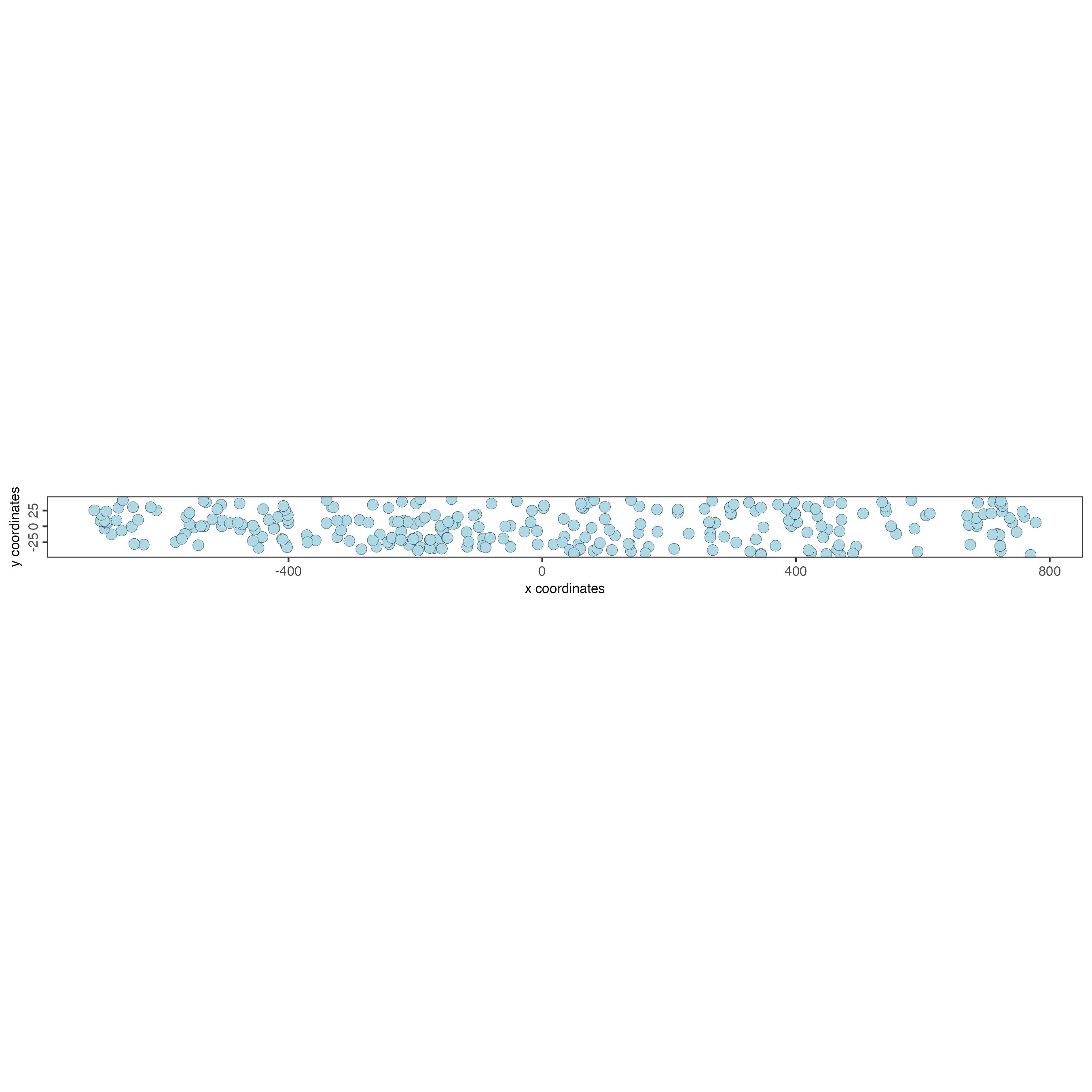

This cross section can then be used in cross section-specific plotting functions.
