Detection of spatial co-expression modules
Source:vignettes/spatial_coexpression_modules.Rmd
spatial_coexpression_modules.RmdOnce you have found Finding genes or features that follow spatial patterns in their expression, you can group them to find clusters with similar expression patterns that create co-expression modules.
1 Setup and load example dataset
# Ensure Giotto Suite is installed
if(!"Giotto" %in% installed.packages()) {
pak::pkg_install("drieslab/Giotto")
}
# Ensure Giotto Data is installed
if(!"GiottoData" %in% installed.packages()) {
pak::pkg_install("drieslab/GiottoData")
}
library(Giotto)
# Ensure the Python environment for Giotto has been installed
genv_exists <- checkGiottoEnvironment()
if(!genv_exists){
# The following command need only be run once to install the Giotto environment
installGiottoEnvironment()
}
# load the object
g <- GiottoData::loadGiottoMini("visium")3 Calculate pairwise distances between genes.
spat_cor_netw_DT <- detectSpatialCorFeats(
g,
method = "network",
spatial_network_name = "spatial_network",
subset_feats = ext_spatial_genes)4 Cluster the top spatial genes into 5 clusters
spat_cor_netw_DT <- clusterSpatialCorFeats(spat_cor_netw_DT,
name = "spat_netw_clus",

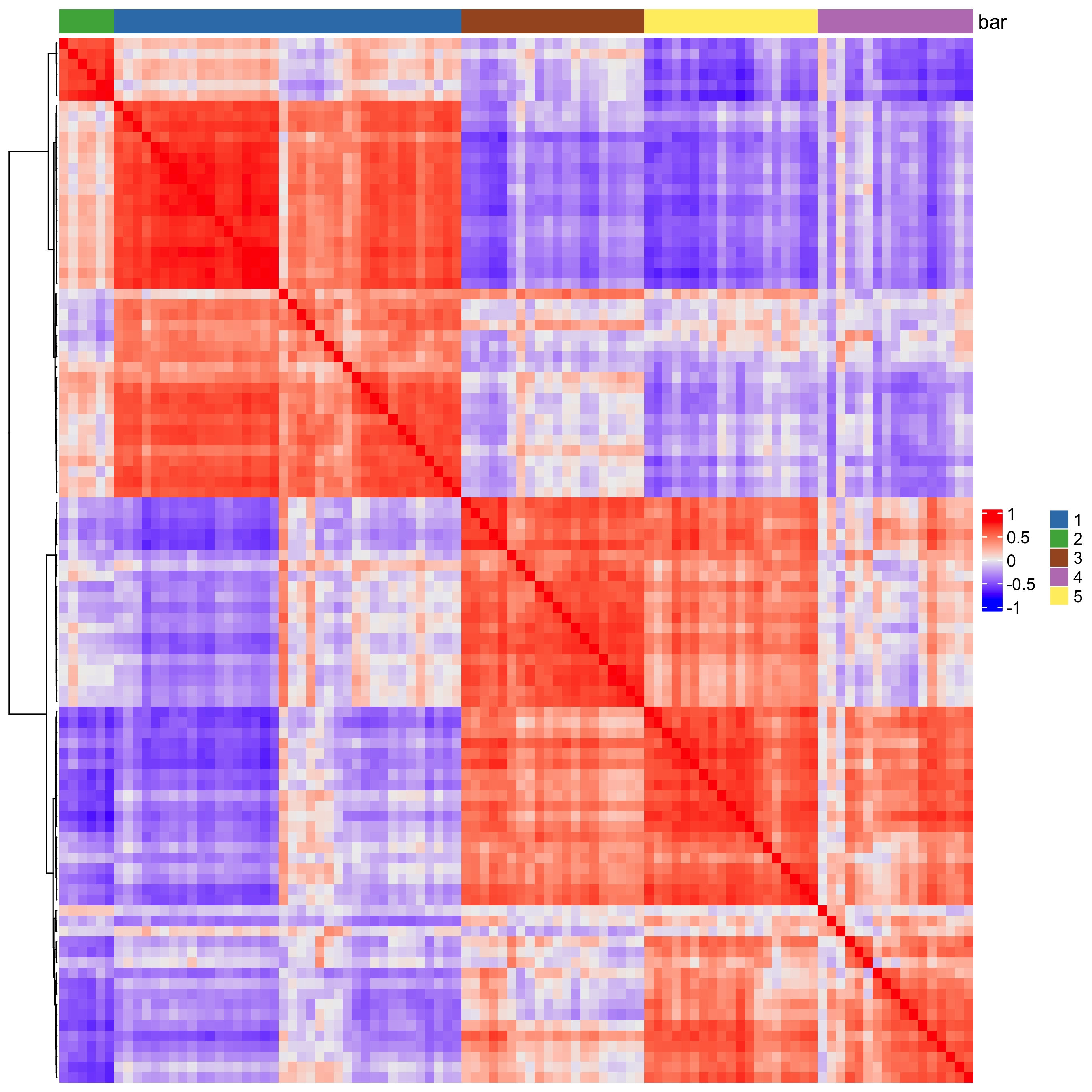

k = 5)5 Plot the correlation of the top spatial genes with their assigned cluster.
heatmSpatialCorFeats(g,
spatCorObject = spat_cor_netw_DT,
use_clus_name = "spat_netw_clus",
heatmap_legend_param = list(title = NULL))

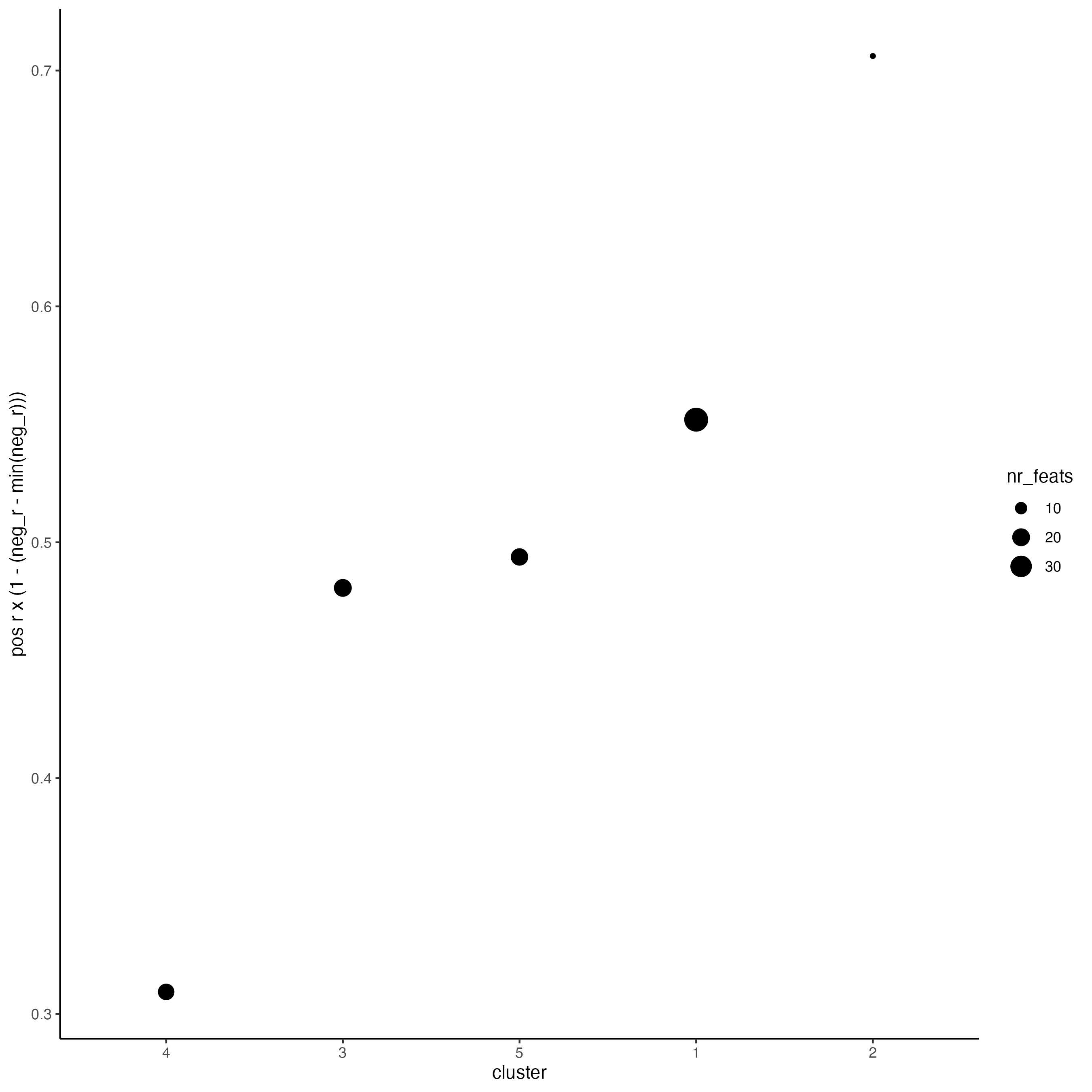

5.1 Rank spatial correlated clusters and show genes for selected clusters
netw_ranks <- rankSpatialCorGroups(g,
spatCorObject = spat_cor_netw_DT,
use_clus_name = "spat_netw_clus")
5.2 Create the metagene enrichment score per co-expression cluster
cluster_genes_DT <- showSpatialCorFeats(spat_cor_netw_DT,
use_clus_name = "spat_netw_clus",
show_top_feats = 1)
cluster_genes <- cluster_genes_DT$clus
names(cluster_genes) <- cluster_genes_DT$feat_ID
g <- createMetafeats(g,
feat_clusters = cluster_genes,

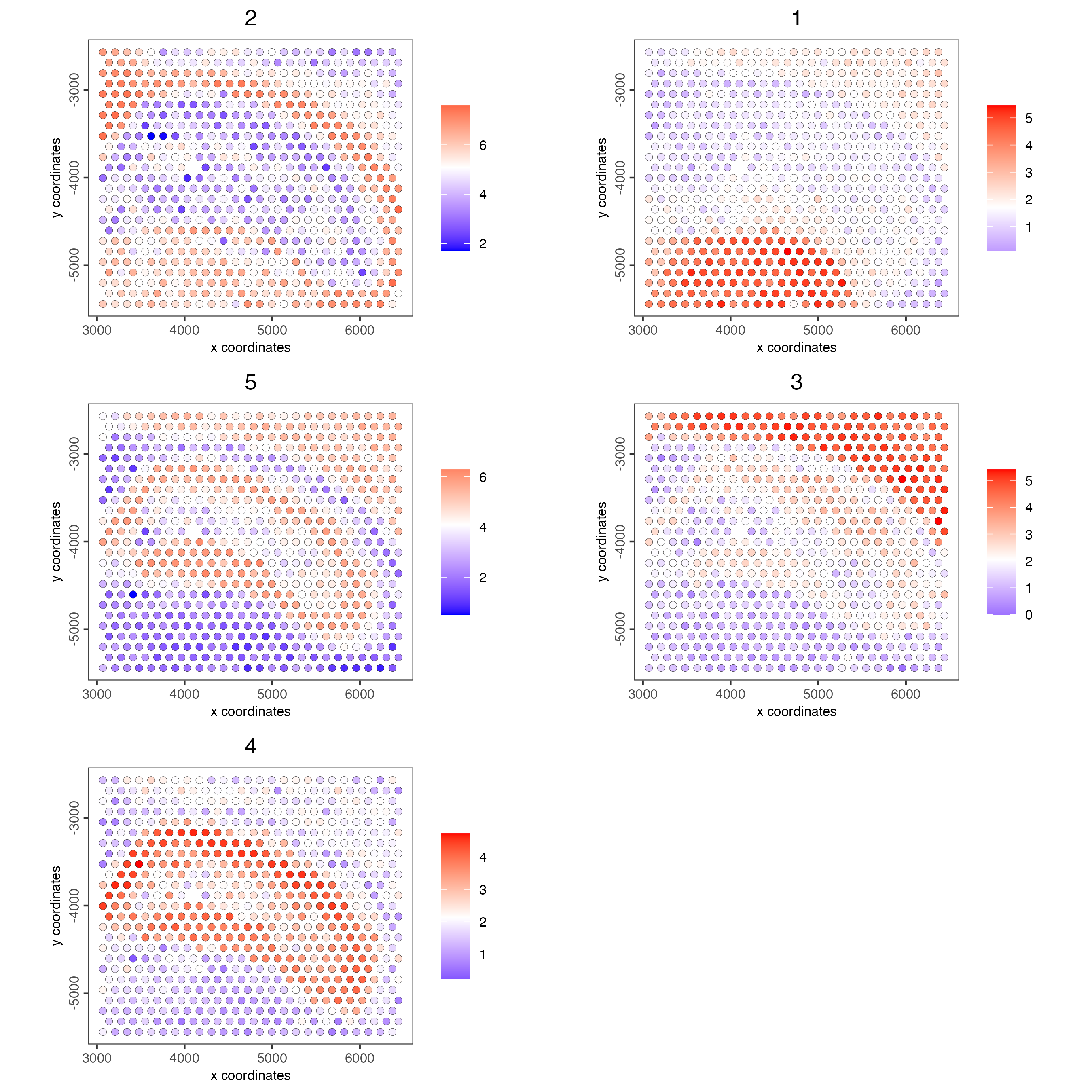

name = "cluster_metagene")Plot the spatial distribution of the metagene enrichment scores of each spatial co-expression cluster.
spatCellPlot(g,
spat_enr_names = "cluster_metagene",
cell_annotation_values = netw_ranks$clusters,
point_size = 2,
cow_n_col = 2)
6 Get the top genes per spatial co-expression module
Run this code for downstream analysis, such as calculation of spatially informed clusters or calculation of spatial domains with HMRF.
In a real-size dataset, usually you want to extract the top ~30 genes per co-expression module, but this number is variable depending on the number of features available in your dataset.
coexpr_dt <- data.table::data.table(
genes = names(spat_cor_netw_DT$cor_clusters$spat_netw_clus),
cluster = spat_cor_netw_DT$cor_clusters$spat_netw_clus)
data.table::setorder(coexpr_dt, cluster)
top10_coexpr_dt <- coexpr_dt[, head(.SD, 10) , by = cluster]
spatial_genes <- top10_coexpr_dt$genes7 Session Info
