Finding genes or features that follow spatial patterns in their expression can help to better understand the spatial microenvironment of the sample.
1 Setup and load example dataset
# Ensure Giotto Suite is installed
if(!"Giotto" %in% installed.packages()) {
pak::pkg_install("drieslab/Giotto")
}
# Ensure Giotto Data is installed
if(!"GiottoData" %in% installed.packages()) {
pak::pkg_install("drieslab/GiottoData")
}
library(Giotto)
# Ensure the Python environment for Giotto has been installed
genv_exists <- checkGiottoEnvironment()
if(!genv_exists){
# The following command need only be run once to install the Giotto environment
installGiottoEnvironment()
}
# load the object
g <- GiottoData::loadGiottoMini("visium")2 Create a spatial network
g <- createSpatialNetwork(g,
method = "kNN",
k = 6,
maximum_distance_knn = 400,
name = "spatial_network"
)

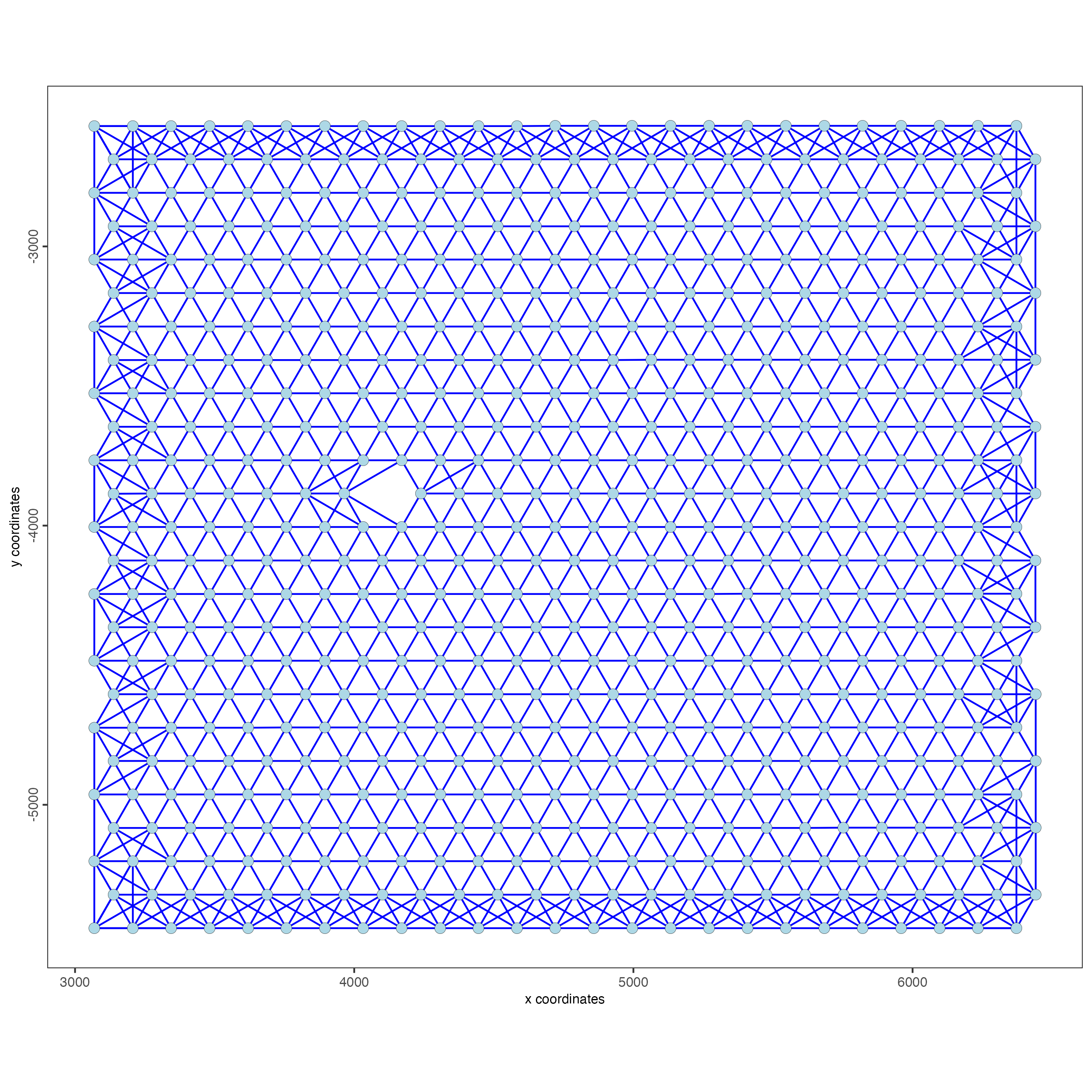

spatPlot2D(g,
show_network = TRUE,
network_color = "blue",
spatial_network_name = "spatial_network"
)
3 Rank binarization
Rank the genes on the spatial dataset depending on whether they exhibit a spatial pattern location or not.
This step may take a few minutes to run.
ranktest <- binSpect(g,
bin_method = "rank",
calc_hub = TRUE,
hub_min_int = 5,
spatial_network_name = "spatial_network"
)3.1 Visualize top results

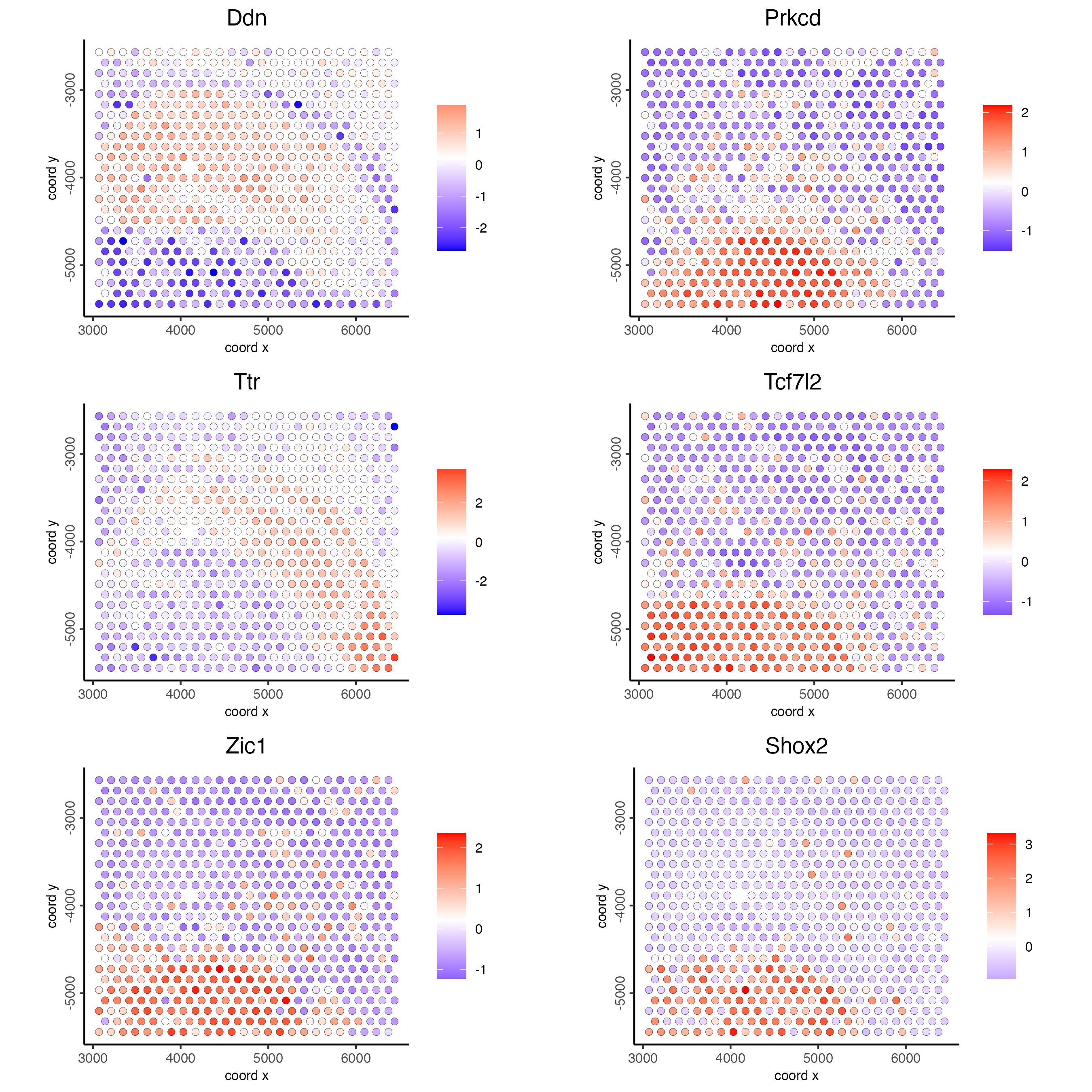

Plot the scaled expression of genes with the highest probability of being spatial genes.
spatFeatPlot2D(g,
expression_values = "scaled",
feats = ranktest$feats[1:6],
cow_n_col = 2,
point_size = 2
)
